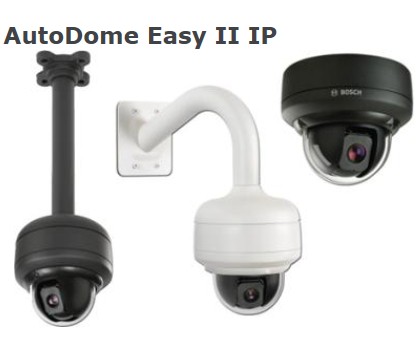

博世VEZ-211-ECCEIVA室外標清IP高速球型攝像機 AutoDome Easy II IP（具有 IVA 功能），碳黑色 10x 彩色 PAL 攝像機，配備透明球型罩
產品編號：VEZ-211-ECCEIVA
產品價格：￥
產品簡介：博世VEZ-211-ECCEIVA室外標清IP高速球型攝像機 AutoDome Easy II IP（具有 IVA 功能），碳黑色 10x 彩色 PAL 攝像機，配備透明球型罩
博世VEZ-211-ECCEIVA室外標清IP高速球型攝像機 AutoDome Easy II IP（具有 IVA 功能），碳黑色 10x 彩色 PAL 攝像機，配備透明球型罩
VEZ-211-ECCEIVA Outdoor AutoDome Easy II IP with IVA Clear 10x Color PAL
室外 AutoDome Easy II IP（具有 IVA 功能），碳黑色 10x 彩色 PAL 攝像機，配備透明球型罩
可選標準，包括高性能的 H.264 和 JPEG
| Imager | 1/4 in. Exview HAD CCD |
| (752 x 582 PAL)/(768 x 494 NTSC) | |
| Lens | 10x Zoom (4.2–42.0 mm) (f/1.8) |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override (F1.8 to F2.9) |
| Field of View | Approx. 4.6° (TELE end) to 46° (Wide end) |
| Gain Control | AGC on/off (28dB max) |
| Synchronization | Internal/external |
| Aperture Correction | User adjustable |
| Horizontal Resolution | 530 TVL typical |
| Digital | 12x |
| Optical Zoom | 10x |
| Optical Zoom FOV | 4.6° to 46° |
| Sensitivity (typical) | 30 IRE |
| With Tinted Bubble* |
| SensUP Off | 0.83 lx |
| SensUP On (1/4) | 0.043 lx |
| *With optional clear bubble, approximately 0.6 F-stop improvement. | |
| SNR | 50 dB |
| White Balance | Auto, indoor, outdoor, 1 push |
| Standards | H.264 (ISO/IEC 14496?10), M?JPEG, JPEG |
| Streaming | Multiple, individually configurable streams in H.264 and JPEG,configurable frame rate and bandwidth |
| GOP Structure | I, IP, IPBB |
| Data Rate | 9.6 kbps to 6 Mbps |
| Resolutions and Frame Rates | |
| Name | NTSC |
| 4CIF/D1 | 704 x 480, 30 ips |
| CIF | 352 x 240, 30 ips |
| Overall IP delay | 240 ms |
| Frame rate | 1 to 50/60 (PAL/NTSC) |
| Network | |
| Protocols | RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP |
| Ethernet | 100 Base-TX, auto-sensing, half/full duplex, RJ45 |
| Power over Ethernet (Indoor models only) | IEEE 802.3af |
| Unit Configuration | Via Microsoft Internet Explorer 7.0 Web browser or higher, Divar XF, Vidos, or Configuration Manager |
| Software Update | Flash ROM, remote update |
| Weight | 1.3 kg (2.86 lb) |
| Pan Range | 0-360° continuous |
| Tilt Angle | 0-94° |
| Variable Speed | 0.1°/s-120°/s |
| Pre-position Speed | Pan:360°/s Tilt: 100°/s |
| Preset Accuracy | ± 0.1° typ. |
| Rated Voltage |
| Camera, Indoor | 24 VAC ± 10%, 50/60 Hz orPower over Ethernet (IEEE 802.3af Class 3) |
| Camera, Outdoor | 24 VAC ± 10%, 50/60 Hz |
| Heater, Outdoor Models | 24 VAC ± 10%, 50/60 Hz |
| Power Draw: (typ.) | |
| Indoor Models | 12 W |
| Outdoor Models | Camera only: 12 WHeater only: 15 WTotal: 27 W |
| Operating Temp. | |
| Indoor Models | –10°C to 40°C (14°F to 104°F) |
| Outdoor Models | –30°C to 50°C (–22°F to 122°F) |
| Operation Humidity | 0% to 90% relative, non-condensing |
| Storage Temp. | –20°C to 60°C (–4°F to 140°F) |
| Environmental Rating | |
| Indoor Models | Rated for indoor use only |
| Outdoor Models | Rated for IP65 |
| Sectors/Titling | 8 independent sectors with 16-character titles/sector |
| Pre-positions | 99, each with 16-character titles |
| Guard Tours | Two (2) types of tours:?Recorded tours - two (2), total duration 15 minutes?Preset tour - one (1), consisting of up to 99 scenes, consecutively |
| Supported Languages | English, French, German, Spanish, Portuguese, Polish, Italian, Dutch, and Russian |
| Power | |
| PoE, Indoor Models | RJ-45 100 Base-TX Ethernet Power over Ethernet IEEE 802.3af Class 3 |
| Camera, All Models | 24 VAC, 50/60 Hz |
| Heater, Outdoor Models | 24 VAC, 50/60 Hz |
| Video and Control | RJ-45 100 Base-TX Ethernet |
| Alarm Input (2) | NC/NO |
| Alarm Output | Open collector NPN32 VDC @ 150 mA max |
| Material | Cast aluminum |
| Color | White or Charcoal |
| Size (Diameter x Height) | 6.02 in. x 4.61 in.(153.0 mm x 133.0 mm), Cast aluminum |
| Bubble | 4.0 in. (10.2 cm), Polycarbonate |
