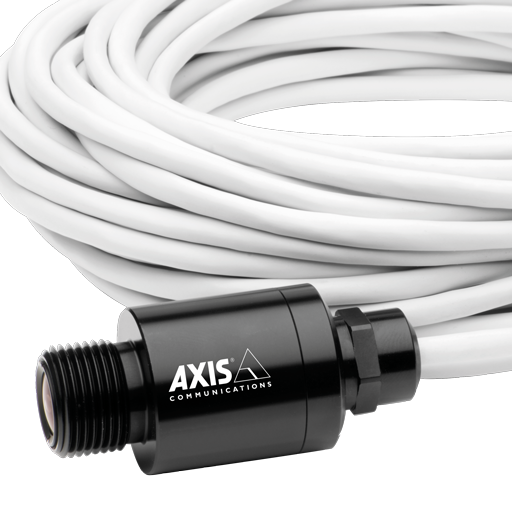

AXIS F1035-E 12M sensor unit
AXIS F1035-E sensor component
Fish-eye lenses provide extensive concealed HDTV indoor or outdoor surveillance
Flexible and solid design, suitable for indoor and outdoor and mobile monitoring
Fixed lens with 1080p resolution
194° super wide horizontal field of view
Covert surveillance
AXIS f1035-e sensor component, together with the AXIS F main component, covers the ultra-wide range with fish-eye field of vision. It is very suitable for indoor and outdoor and mobile monitoring places to provide highly concealed monitoring; For example, it is used in entrances, long corridors, around atms and inside emergency vehicles, buses and trams.
Small sensors can be installed in small Spaces, built into walls or ceilings, or integrated into warning lights on top of emergency vehicles. The robust IP66 class AXIS f1035-e is dust, water, snow, vibration, impact, impact and temperature fluctuation resistant.
AXIS f1035-e includes an image sensor and a fish-eye lens with an ultra wide horizontal field of view of 194° and 1080p resolution.
It is preinstalled with a 3 m (10 ft) or 12 m (39 ft) cable to connect the AXIS F main components. The main components can be installed indoors, in the car or outside the shell and far away. The AXIS f1035-e is accompanied by an AXIS F8201 angle-changing mounting bracket, allowing the sensor to be fixed and tilted at any position.
The image above shows how and where AXIS f1035-e is used. 1. Take the porch as an example, people at the same height as the camera on either side can still be photographed; 2: panoramic monitoring of the entrance; 3: panoramic monitoring provided when the equipment is installed on the ceiling of the room; 4: panoramic monitoring on the bus, presenting the monitoring picture of the event in a more comprehensive way.
Compatible AXIS F Main Units
The AXIS F34 Main Unit
The AXIS F34 Main Unit
The AXIS F41 Main unit
The AXIS F41 Main Unit
AXIS F44 Dual Audio Input
AXIS F44 Dual Audio Input
Fish-eye lenses provide extensive concealed HDTV indoor or outdoor surveillance
Flexible and solid design, suitable for indoor and outdoor and mobile monitoring
Fixed lens with 1080p resolution
194° super wide horizontal field of view
Covert surveillance
AXIS f1035-e sensor component, together with the AXIS F main component, covers the ultra-wide range with fish-eye field of vision. It is very suitable for indoor and outdoor and mobile monitoring places to provide highly concealed monitoring; For example, it is used in entrances, long corridors, around atms and inside emergency vehicles, buses and trams.
Small sensors can be installed in small Spaces, built into walls or ceilings, or integrated into warning lights on top of emergency vehicles. The robust IP66 class AXIS f1035-e is dust, water, snow, vibration, impact, impact and temperature fluctuation resistant.
AXIS f1035-e includes an image sensor and a fish-eye lens with an ultra wide horizontal field of view of 194° and 1080p resolution.
It is preinstalled with a 3 m (10 ft) or 12 m (39 ft) cable to connect the AXIS F main components. The main components can be installed indoors, in the car or outside the shell and far away. The AXIS f1035-e is accompanied by an AXIS F8201 angle-changing mounting bracket, allowing the sensor to be fixed and tilted at any position.
The image above shows how and where AXIS f1035-e is used. 1. Take the porch as an example, people at the same height as the camera on either side can still be photographed; 2: panoramic monitoring of the entrance; 3: panoramic monitoring provided when the equipment is installed on the ceiling of the room; 4: panoramic monitoring on the bus, presenting the monitoring picture of the event in a more comprehensive way.
Compatible AXIS F Main Units
The AXIS F34 Main Unit
The AXIS F34 Main Unit
The AXIS F41 Main unit
The AXIS F41 Main Unit
AXIS F44 Dual Audio Input
AXIS F44 Dual Audio Input
