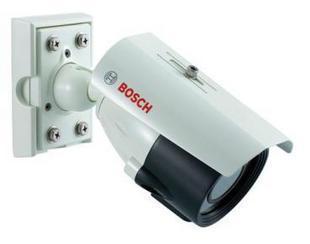

Bosch VTI-218-1V03-1C(WZ18c) integrated the bullet type infrared camera

WZ20 integrated hd type bullet cameras day and night
WZ20 combines high-definition LXR imaging, the latest advanced mechanical filter technology and absolute efficient users
Friendly design cameras provide 45 meters (150 feet) high performance night vision.
WZ20 have 30 powerful LED, enough to make infrared detection to the range of 91 meters (300 feet). They designed for CCTV imaging, infrared light can be produced in 45 meters (150 feet) away to generate high performance of night vision image.
WZ20 USES patented a third of an inch of CCD technology, offers 550 TV lines clear images. LXR technology via on-site validation can provide excellent infrared spectral response, and its video images have low ghosting, less stripes and outstanding character such as stun resist. - Cut due to the use of double window IR (infrared) - Pass and IR (infrared) filter
Mirror,
WZ20 can provide accurate color during the day, and provide excellent infrared sensitivity at night. Photoelectric control can not only promote energy saving, but also can ensure accurate
The day - night mode switch, so as to realize the all-weather (24/7) of excellent performance. WZ20 also equipped with general 5-50 mm lens, infrared correction in visible light
Can show the excellent performance and infrared light. Due to the combination of mechanical filter, WZ20 optical core parts almost eliminated the focus between color and infrared mode
Move, so during the day or night can achieve clear focus images. Changing times and zoom manually from the external control, without adjusting tools, makes user can easily adjust the 5-50 mm lens infrared correction. 360 DHS level / 90 DHS vertical rotating stents and sun shade are supplied as standard parts.
The basic function application
Business schools and colleges factory warehouse retail hotel parking lot and nightclub transport hub perimeter protection
Certificate and approval
Regional accreditation
European CE
WZ20 integrated hd type bullet cameras day and night
550 TV line high-definition 1/3 inch LXR CCD
Mechanical filter can achieve vivid image color during the day
45 meters (150 feet) high performance night vision
5-50 mm manual zoom lens aperture infrared calibration automatically
IP66 standard and adjust the zoom and focus from the outside
2 | WZ20 integrated hd type bullet cameras day and night
Technical specifications
Video signal processing of digital signal processing (DSP)
CCD camera to a third of an inch LXR CCD with mechanical filter technology
Filter mechanical type double window, infrared by ir
check
High-resolution high-definition TV line 550
Effective pixels (vertical level x) PAL: 795 x 596, NTSC: 811 x 508
Night 0 lux sensitivity (infrared) open
Day and night switch photoelectric control, automatic
Electronic shutter from 1/50 to 1/100000 of a second (PAL),
1/60 to 1/100000 of a second (NTSC)
1 Vpp composite video output signal, 75 ohms
Signal-to-noise ratio is greater than 48 dB
Gamma 0.45
50 mm lens 5 - infrared correction, manual zoom, DC
Automatic aperture
External regulation zoom lens control, automatic focal length and aperture
LED infrared array of uniform distribution, photoelectric control
Wavelength of 850 nm
The LED number 30
Electrical indicators
Voltage 12 to 24 VAC or VDC
Maximum 8 tile power consumption (infrared lamp open)
Power equipment to match
Mechanical indicators
Structure solid moulded aluminium shell
Silver plating color
Sun shade standard accessories
The standard mounting bracket 360 DHS level / 90 DHS vertical rotating stents
Weight 1.7 kg (3.8 lb)
Size ? 98 (long) x 292 mm (3.0 x 11.5
Inch)
Environmental requirements
Working temperature range - 30 DHS to 55 DHS C + C (22 - DHS F to + 131 DHS F)
Environmental IP66 standard
Order information
WZ20NXV550? 0 idns hd camera bullet shaped
Integrated amphibious type bullet cameras day and night, 550
Line of sight, ExView, color black and white and switch, mechanical filter
Mirror, 30 LED, silvery white, NTSC, 5 to 50 mm
M lens, the power supply to match WZ20NXV550? 0
WZ20PXV550? Type 0 integrated hd bullets, day and night
Camera integrated amphibious type bullet camera, day and night 550 TV lines, ExView, color black and white and switch, mechanical filter
Mirror, 30 LED, silvery white, PAL, 5 to 50 mm
Lens, the power supply to match WZ20PXV550? 0
Hardware accessories
WZMB. 001 connector adapters chassis
Is suitable for the adapter WZ18 and WZ20 chassis
WZMB. 001
The UPA - 2420-50 power equipment
220 vac, 50 hz, 24 vac, 20 va output
The UPA - 2420-50
