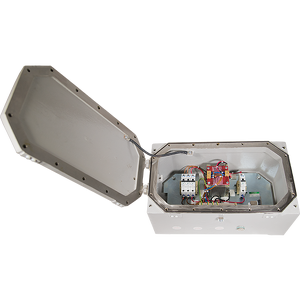

 Power Supply ATEX
Explosion-protected power supply
The power supply is ATEX certified and made with 316L stainless steel with a corrosion resistant epoxy paint finish. It is
pre-mounted with fuses, terminals, RJ45 coupler and 115/230 V AC transformer, which provides 24 V AC for explosionprotected
cameras and washer tank. The power supply provides different input power and an extended temperature
range.
> ATEX certified

> Suitable for explosion-protected cameras and washer tank

Explosion-protected network cameras
Explosion-protected PTZ network cameras
Certification part
code
Type GP2 CCTV Panel 1
Casing IP66-rated SAE 316L stainless steel casing
Corrosion-resistant epoxy paint finish
Cable entries:
4x M20x1.5P
1x entry fitted with certified stainless steel plug and fibre washer
Sustainability PVC free
Environment Indoor/Outdoor
Power Input: 120 V AC, max 1.5 A
230 V AC, max 0.75 A
24 V AC, max 5 A
Output: 24 V AC, 120 W, max 5 A
Operating
conditions
-40 °C to 55 °C (-40 °F to 131 °F)
Humidity 10–100% RH (condensing)
Approvals Exd IIB Gb, Ex tb IIIC Db, IP66
EN 50014, EN 50018 / EN 60079-0, EN 60079-1, EN 60079-31
Connectors RJ45 coupler, CAT6, shielded
Weight 85 kg (187 lb)
Warranty Axis 3-year warranty
